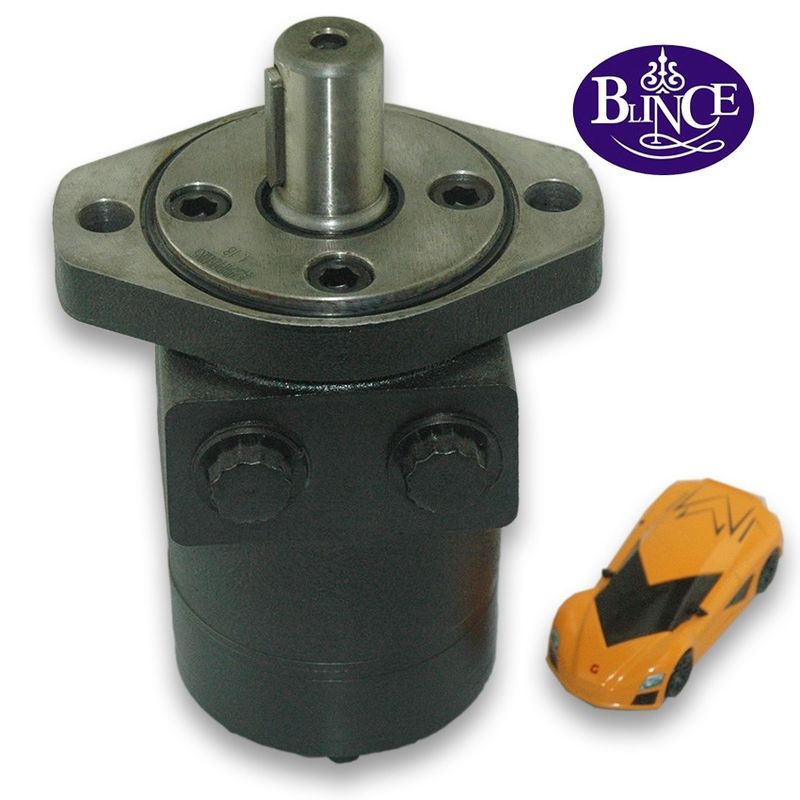

Name: Heavy Duty Hydro Parker Winch Motor 101-1700-009 Mini Tractor Blince OMPH36
Brand: BLINCE
SKU: OMPH 36 hydraulic motor
Price: 60 USD

Home Products Hydraulic Winch Motor

Heavy Duty Hydro Parker Winch Motor 101-1700-009 Mini Tractor Blince OMPH36

Product Details:

Place of Origin:	China
Brand Name:	BLINCE
Model Number:	OMPH 36 hydraulic motor

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	60-78usd/pc
Packaging Details:	Carton or wood case
Delivery Time:	15-20days
Payment Terms:	T/T, Western Union
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Material:

Cast Iron

Max Pressure:

140bar

Cont Speed:

120-1500 Rpm

High Light:

ramsey hydraulic winch motor

ramsey winch motor

OMPH series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.

Characteristic:

1. Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

2. At seal can bear high pressure of back and the motor can be used in parallel or in series.

3. Eial design in the driver-linker and prolong operating life

4. Eial design for distribution system can meet the requirement of low noise of unit.

type		OMP OMPH 36	OMP OMPH 50	OMP OMPH 80	OMP OMPH 100	OMP OMPH 125	OMP OMPH 160	OMP OMPH 200	OMP OMPH 250	OMP OMPH 315	OMP OMPH 400	OMP OMPH 500
Geometric displacement		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max.speed.(rpm)	con.	1500	1150	770	615	490	383	310	250	192	155	120
	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max.torque(N.m	cont.	55	100	146	182	236	302	360	383	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
Max.output(KW)	cont.	8.0	10.0	10.0	11.0	10.0	10.0	10.0	8.5	7.0	6.0	5.0
	int	11.5	12.0	12.0	13.0	12.0	12.0	12.0	10.5	8.5	7.0	6.0
Max.pressure Drop(Mpa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
Max.flow(L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
	int.	60	75	75	75	75	75	75	75	75	75	75
